Alinta 1.0mm Pitch FPC Connector Front Contact Back Flip Height 2.0mm Horizontal SMT Type FFC Connector

Name: Alinta 10mm Pitch FPC Connector Front Contact Back Flip Height 20mm Horizontal SMT Type FFC Connector
Brand: Alinta
Price: 1 USD

Brand Name : Alinta

Model Number : 0.5 front plug and rear flip H2.0

Certification : RoHS, Reach

Place of Origin : China

MOQ : 1000

Payment Terms : T/T

Supply Ability : 25kk

Delivery Time : 2 ~3wks

Packaging Details : Tape & Reel

Price : negotiable

Contact Now

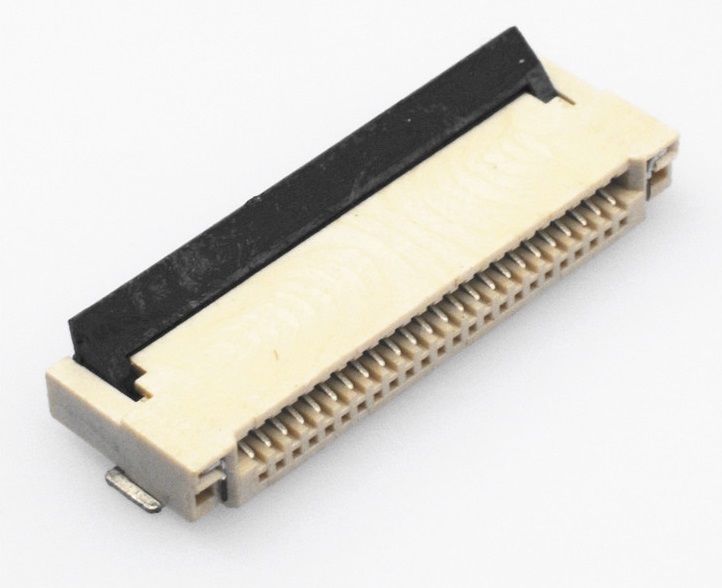

Alinta 1.0mm Pitch FPC Connector Front Contact Back Flip Height 2.0mm Horizontal SMT Type FFC Connector

Specification

1. Rated current:0.5A AC/DC

2. Rated voltage: 50V, AC/DC

3. Withstand voltage: 250V AC for 1 mintue

4. Contact Resistance: 30mΩ max

5. Insulation Resistance: 500MΩ

6. Durability: 20 times Min
6. Temperature range:-40℃ ~ +85℃

7. Poles: 4~40P

Material:

Base(Housing): Thermoplastic UL94V-0

Cover: Thermoplastic UL94V-0

Terminal: Phosphor Bronze

Stator/Solder lug: Brass

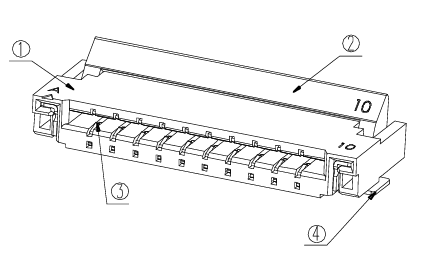

Alinta 1.0mm Pitch FPC Connector Front Contact Back Flip Height 2.0mm Horizontal SMT Type FFC Connector

Housing
Cover
Terminal
Stator/Solder lug

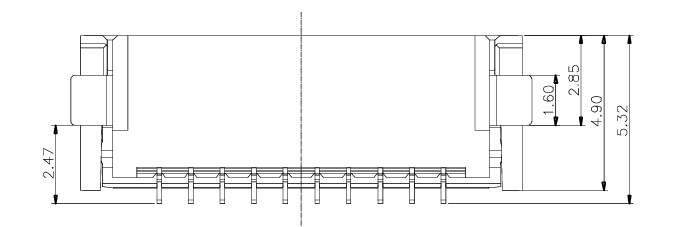

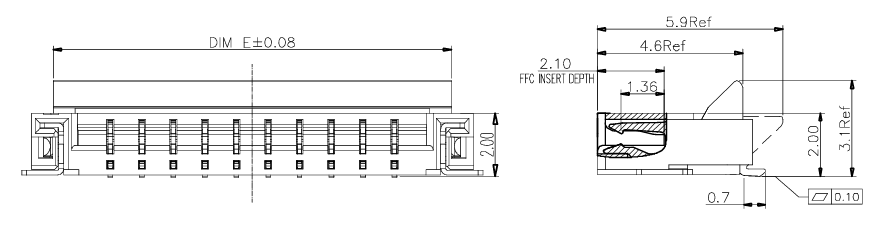

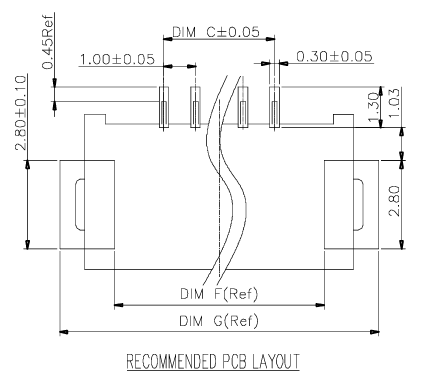

Dimension

Alinta 1.0mm Pitch FPC Connector Front Contact Back Flip Height 2.0mm Horizontal SMT Type FFC Connector

Please contact Alinta for detail product information.

-----------------------------------------------------------------------------

Alinta Electronics Co., Ltd. is a professional manufacturer of FPC/FFC connectors, strip connectors, FFC soft flat cables, SMD pin headers, board-to-board connectors, pin/female headers, as well as SD/TF/CF/SIM card slots. The company provides one-stop service from product design, development, production to sales. With a wide range of products and stable, reliable quality, the company has passed ISO9001 and ISO14001 certifications.
